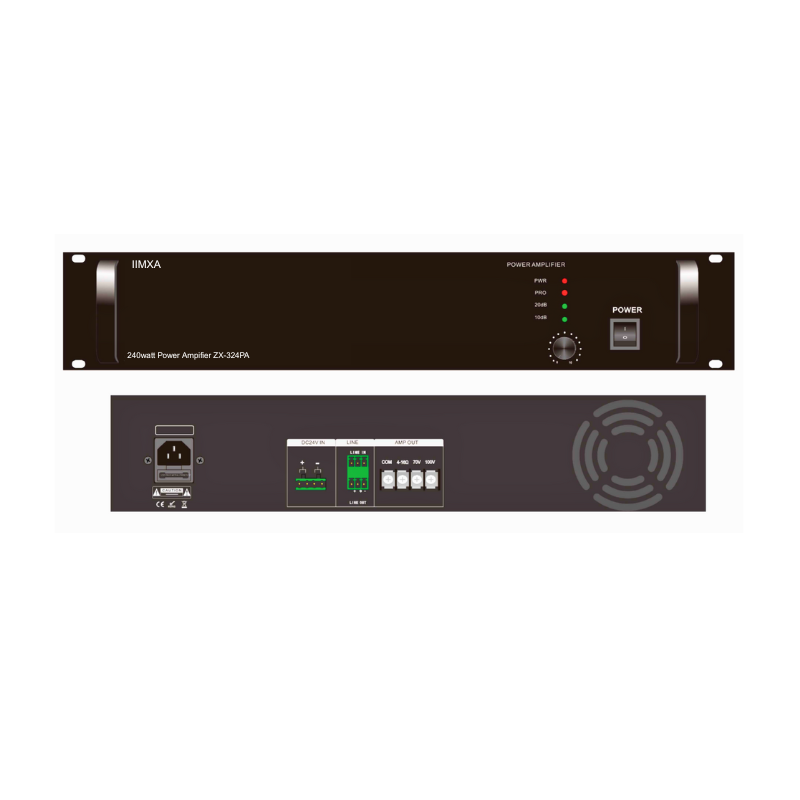

ZX-324PA

ZX-324PA

240 Watt Power Amplifier

Your Go-To Choice for High-Performance, Dependable Audio Amplification.

Your trusted solution for high-performance, dependable audio amplification. Engineered with cutting-edge technology and premium components, these amplifiers are designed to deliver superior sound clarity and energy efficiency, making them ideal for a wide range of professional audio applications.

For professionals who demand both performance and reliability, the ZX-300PA Series Power Amplifiers deliver unmatched audio quality, efficiency, and durability. Whether for commercial venues, conference rooms, or larger installations, these amplifiers are built to exceed expectations and enhance the sound experience with confidence.

🔹 Robust Power Handling: Available in three models—ZX-324PA (240W), ZX-350PA (500W), and ZX-365PA (650W)—to cater to diverse power requirements.

🔹 Flexible Outputs: The amplifiers provide constant voltage outputs (70V/100V) as well as constant resistance outputs (4Ω – 16Ω), ensuring compatibility with a range of speaker systems.

🔹 User-Friendly Controls: Each unit features an independent volume control for tailored sound management, allowing you to achieve the perfect balance in any setting.

🔹 Advanced Protection Features: Designed with built-in indicators for signal status, peak detection, and overload protection, the ZX Series guarantees smooth and secure operation even under the most demanding conditions.

Rated Output

240 Watt

Power Source

160V AC-265V AC@50/60HZ (BACKUP VIA 24VDC)

AC Power Consumption (240V AC)

1.85A

Current consumption (24VDC)

9.9 A

Frequency Response

80Hz-20 KHz (+/- 1dB)

Total Harmonic Distortion (THD)

≤ 0.1 %

Signal to Noise Ratio - S/N

≥ 80 dB

Output

Speaker Output In Screw Type Terminal
Direct Line : 70V / 100V Line / 4Ω- 16Ω
Link Terminal : 10KΩvia Mini Phoenix Terminal (3.18Pitch)

Ventilation

Fan Cooling

Control

Master Control Volume Control

Working Temperature

−5°C ~ 80°C

Dimensions

485MM(W) x 400MM(H) x 88MM(D)

Weight

11.9 KG
