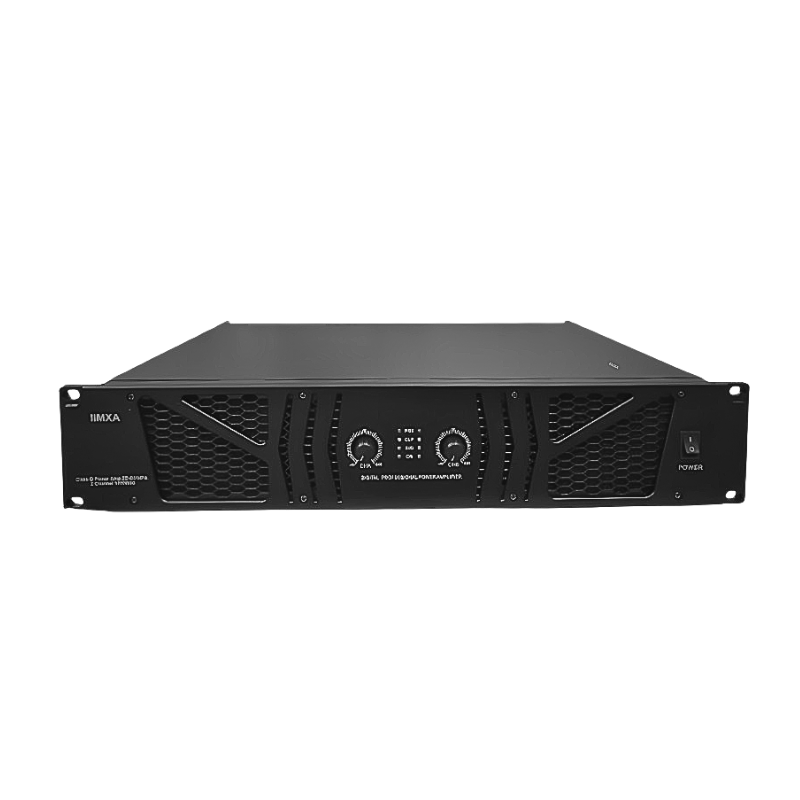

ZD-D314PA
ZD-D314PA
Class-D (1400W X 2)100V Line Dual Channel Power Amplifier
The ZD-D314PA is a high-performance Class-D power amplifier designed to deliver exceptional power and efficiency. With a total output of 2800W, it features adaptive voltage regulation to prevent speaker overloading, ensuring safe and reliable operation in any environment.
Compact and Lightweight Design:
Weighing just 7.5kg, it saves rack space and reduces installation size while maintaining high performance.
Emergency Backup Compatibility:
Seamlessly integrates with the VA-300BP UPS to provide uninterrupted DC and AC power during outages, ideal for emergency broadcasts.
| Rated Output | 1400Watt x 2 |
|---|---|
| Power Source | 180V AC -260V AC@50/600Hz (Back Up Via VA-300BP) |
| AC Power Consumption (240V AC) | 9.5A |
| Frequency Response | 60Hz-18Hz (+/- 1 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.1 % |
| Signal to Noise Ratio - S/N | ≥ 80 dB |
| Output | Speaker Output In Screw Type Terminal |
| Line Input Sensitivity | 1v/10KΩvia XLR |
| Ventilation | Fan Cooling |
| Control | Master Volume Control X 2 |
| Protection | Intelligent Peak Limiter, Overload, Soft Start, Adaptive Voltage Regulation (Prevent Overload) |
| Working Temperature | −5°C ~ 80°C |
| Working Relative Humidity (Environment) | 20%~ 80%(Without Condensation) |
| Dimensions | 485MM(W) x 290MM(H) x 88MM(D) |
| Weight | 7.5 KG |
