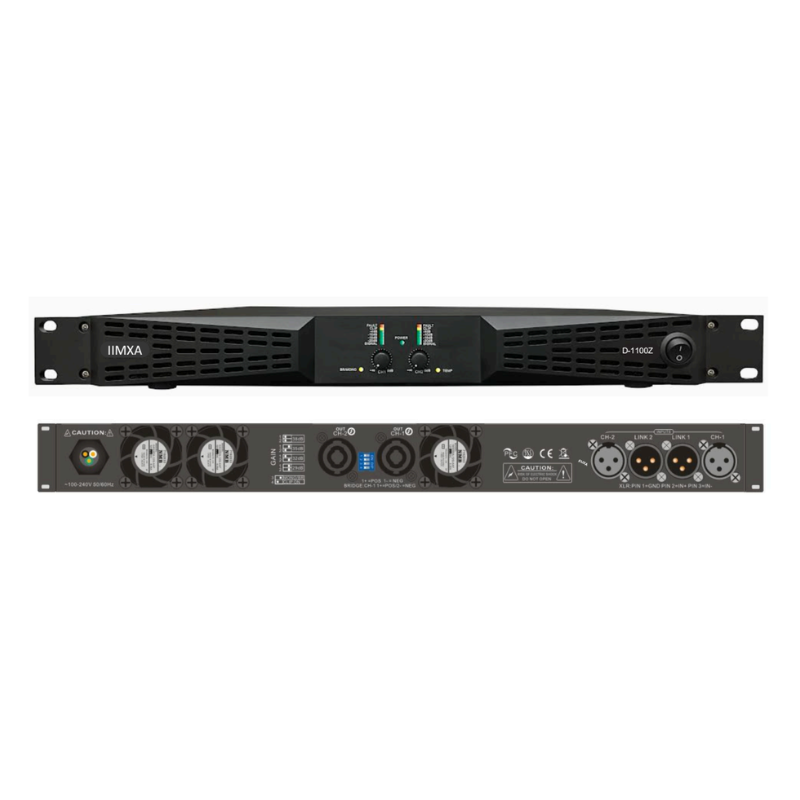

D-1100Z
D-1100Z
Dual Channel 1000w Class D Power Amplifier
PCB’S Anti Corrosion
D-1100Z is Dual Channel 1000W Class D amplifier. This D-1100Z is purpose-built for industrial and rugged environments. With conformal-coated PCBs for anti-corrosion protection, it delivers reliable performance even at 46°C room temperature.
Supporting 2Ω to 8Ω speaker loads and a wide input range of 80–260VAC, it ensures stable operation in demanding conditions. A fixed gain DIP switch provides easy input alignment for seamless integration.Durable, efficient, and powerful — ideal for tough applications.
- High Power Output: Dual channel, 1000W Class D design
- Rugged & Reliable: Conformal-coated PCBs for anti-corrosion protection
- Heat Resistant: Stable performance even at 46°C room temperature
- Flexible Speaker Loads: Supports 2Ω – 8Ω
- Wide Power Input: 80 – 260VAC for versatile installation
- Easy Integration: Fixed gain DIP switch for quick input alignment
- Durable & Efficient: Purpose-built for industrial and tough environments
| Power Sources | 60VAC – 260VAC |
|---|---|
| Stereo Output | 2 x 1000W@8Ohm |
| Power Consumption (A)@Peak | 10.53A |
| Input Sensitivity Options | 0.775V@41dB / 1.125V@38dB / 1.414V@35dB / 2.25V@32dB |
| Total Harmonic Distortion (THD) | 0.01%(10%rated output Power@1khz@8ohm) |
| Signal to Noise Ratio - S/N | >105dBA (20hz – 20khz, 8Ohm) |
| Frequency Response | 20Hz – 20Khz +/- 0.5dB |
| Input impedance | Balance 20kOhm/Unbalance 10kOhm |
| Slew Rate | > 20v / µs |
| Power Delay | 4 seconds |
| Input Terminal | XLR input x 2 / XLR Link x 2 |
| Output Terminal | SPEAKON Connector |
| Dimension | 483MM(W) x 44MM(H) x 370MM(D) |
| Weight | 8.46 KG |
