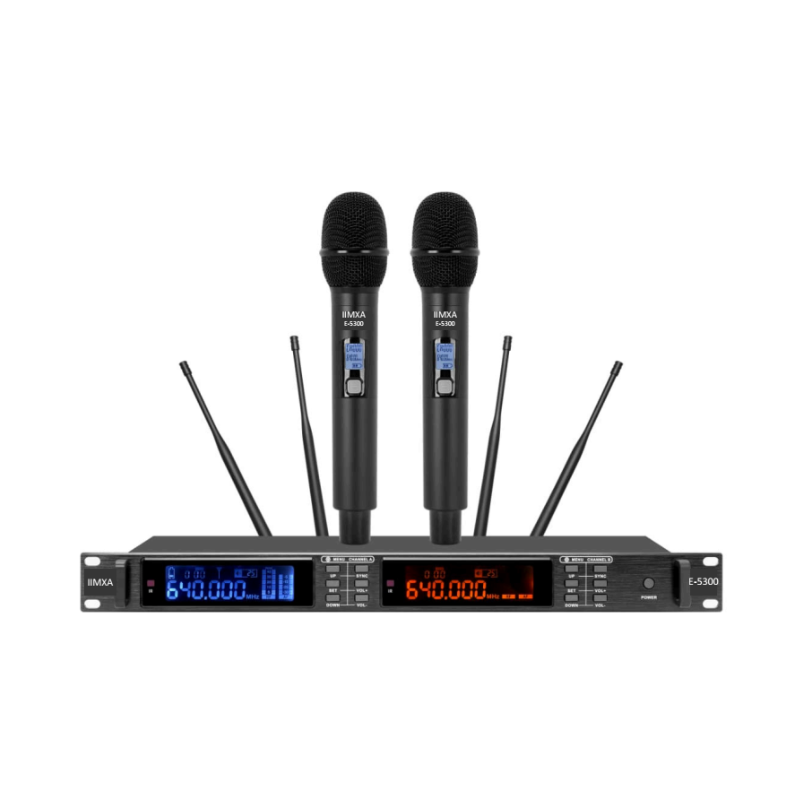

True Diversity UHF Professional 2 Channel Wireless Mic
E-5300 This dual channel wireless handheld microphone system is equipped with PLL synthesized technology for stable frequency, accurate tuning, and reliable performance. With automatic frequency scanning and true diversity reception, it ensures clear sound, minimal interference, and dropout-free transmission for halls, suraus, mosques, and medium sized venues.
Key Features:
- PLL Synthesized Technology – stable frequency and accurate tuning
- Automatic Frequency Scanning – finds the cleanest channel with least interference
- True Diversity Reception – dual antenna system prevents dropouts
- Dual Channel System – supports two handheld microphones simultaneously
- Clear & Reliable Audio – ideal for suraus, mosques, halls, and meeting rooms
| Carrier Frequency Range | 640.000-689.750MHz |
|---|---|
| PLL (Phase-Locked Loop) Synthesized | Infrared Automatic Frequency Synchronization |
| Frequency Stability | ± 0.005% |
| System Distortion | <0.5% |
| Frequency Response | 70Hz-17 KHz ± 3dB |
| Audio Output Level | +10dB (2.5V)/600Ω (Balanced) |
| Dimension (HxWxD) | 485MM(W) x 88MM(H) x 340MM(D) |
| S/N Ratio | >98dB (A weighted) |
| Operating Range | ±60mtr- 70mtr |
| AC Power Supply | AC 100-240V/50-60Hz |
| DC Power Supply | 12V (1.0A) |
| Handheld Mic Battery | AA 1.5V X2 Per Handheld / Transmitter |
| Battery Life | Approx. 8 hours,subject to battery life quality |
