PF-56

PF-56

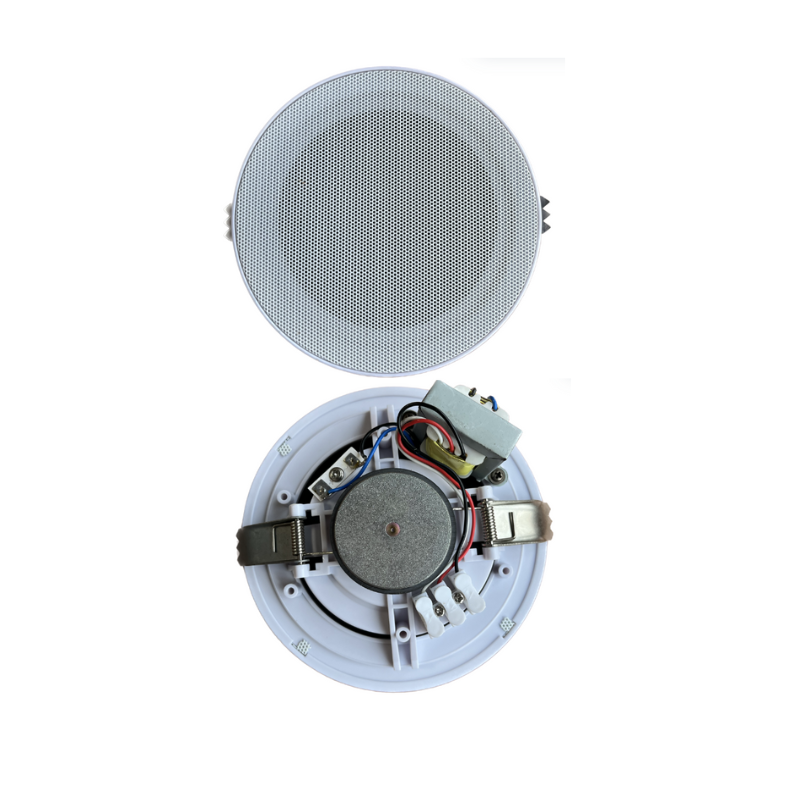

5″6W 100V Line Frameless Ceiling Speaker For Modern Interiors

Engineered without a traditional backbox, this frameless ceiling speaker leverages the ceiling cavity itself as an acoustic chamber, effectively eliminating unwanted sound reflections while delivering rich, balanced audio performance.

Ideal for spaces with modern aesthetics and limited ceiling depth, it requires only 70mm to 90mm of clearance between the ceiling slab and surface—making it perfect for thin-ceiling installations.

Despite its slim profile, the speaker maintains exceptional sound quality and offers an enhanced frequency response, making it an excellent choice for background music (BGM) applications. Its minimalist design seamlessly integrates into contemporary environments, providing both aesthetic appeal and outstanding audio performance.

Power Handling Capacity

6W 100V

Speaker Driver Type

Paper Cone

Speaker Driver Size

5"

Sensitivity

93dB (1W,1m)

Freq Response @ 1kHz

100 -18 KHz

Transformer Taps (100V)

6W/3W/1.5W

Primary Impedance Of Tapping (Ohm)

1667/3334/6667Ohm

Secondary Impedance (Ohm)

8 Ohm

Material

ABS /Alluminium

Overall Size (mm)

175MM (D) x 60MM (H)

Cutting Hole (Diameter)

140MM

Weight

0.5KG

Colour

White
