RM-06M
RM-06M

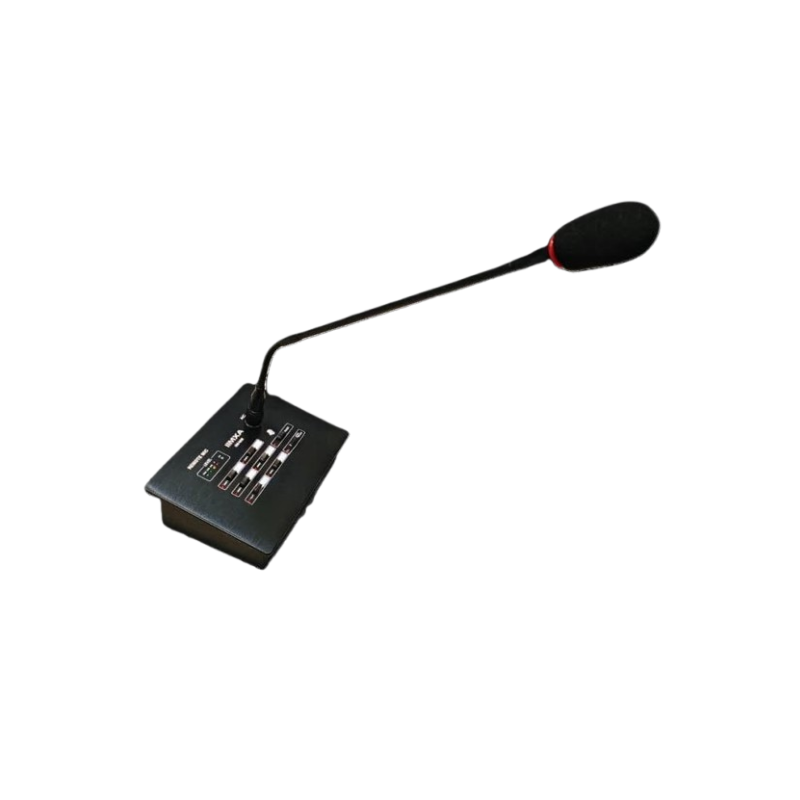

POE- Power Desktop Remote Paging Microphone
RM-06M is a professional-grade desktop remote paging microphone engineered for large-scale public address, intercom, and broadcast systems. Designed for mission-critical environments, it delivers crystal-clear voice paging across multiple zones with precision and reliability.
Engineered for Professional Environments
The RM-06M Remote Paging Microphone is built for operators who demand reliable, high-fidelity communication across complex audio distribution networks. Its robust desktop housing with integrated control panel allows operators to select zones, initiate pages, and manage announcements with minimal setup.
Powered over a single RJ45 Ethernet cable (DC 24V), the RM-06M eliminates the need for separate power supplies, simplifying installation in control rooms, reception desks, and dispatch centers. The gooseneck condenser microphone ensures optimal vocal pickup while minimizing ambient noise interference.
With a wide frequency response of 40Hz to 15kHz and ultra-low THD of just 0.5%, every announcement is delivered with exceptional clarity — whether across a single zone or an entire facility.
Applications
Ideal Use Environments
- Shopping Malls & Retail Complexes — Multi-zone paging for promotions, emergency broadcasts, and customer announcements
- Hospitals & Healthcare Facilities — Reliable patient calls, code alerts, and staff paging across wards
- Transportation Hubs — Airports, bus terminals, and train stations for public address and gate announcements
- Corporate & Government Offices — Intercom, reception paging, and building-wide communication
- Educational Institutions — Schools, colleges, and campuses requiring zoned bell and announcement systems
- Hotels & Hospitality — Front desk paging, emergency notifications, and background music zoning
- Warehouses & Industrial Plants — Loud, clear announcements in high-noise manufacturing and logistics environments
| Power Sources | DC 24V / 1A — RJ45 (PoE) |
|---|---|
| Frequency Respond | 40 Hz – 15 kHz |
| Total Harmonic Distortion (THD) | ≤ 0.5% |
| Output Level | 650 mV |
| AUX Input Sensitivity | AUX 1–2: 500 mV / 10 kΩ |
| MIC Input Sensitivity | MIC 1–3: 1–6 mV |
| Signal-to-Noise Ratio (S/N) | ≥ 75 dB |
| Dimensions (W × D × H) | 200 × 140 × 60 mm |
| Weight | 1.0 kg |
| Microphone Type | Gooseneck Condenser |
| Interface | RJ45 Network / DC Jack |
