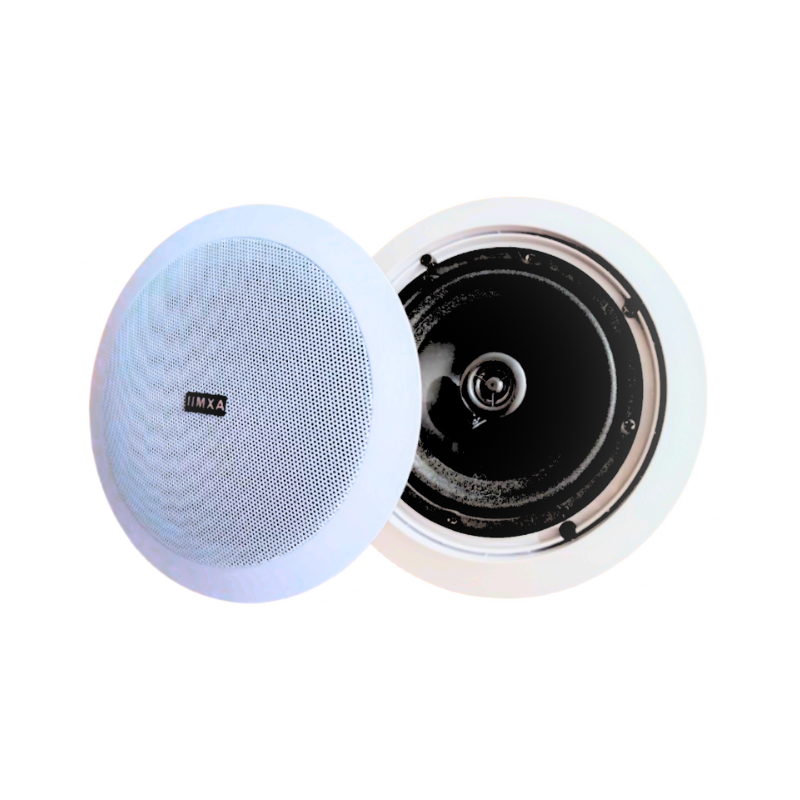

Premium Coaxial Ceiling Speaker P-630R
The P-630R is a premium coaxial ceiling speaker, designed with a 6.5″ mid-bass driver and a 1″ tweeter, delivering a 30W output at 100V. It features an innovative rotary switch, allowing installers to easily adjust the power tapping to match the acoustics of the installation area, ensuring optimal sound distribution even in challenging environments.
Built to last, the speaker is encased in a sturdy metal back enclosure, with carefully engineered padding to enhance sound clarity and depth. The P-630R is particularly well-suited for high-ceiling spaces like hotel lobbies, hotel banquet halls and hotel function rooms, where consistent and high-quality audio is a must.
Rated Output | 30 Watt |
---|---|
Power Rated | 100V/70V |
Speaker Driver Type | Woofer + Twitter |
SPL | 89 dB |
Freq Response @ 1kHz | 90-20 KHz |
Transformer Taps (100V) | 30W/15W/7.5W/3.8W/8 Ohm |
Secondary Impedance (Ohm) | 8 Ohm |
Physical | Specifications as below: |
Grille/Enclosure | Metal / ABS |
Overall Size (mm) | 2300MM (D) x 150MM (H) |
Cutting Hole (Diameter) | 200MM |
Weight | 2.2KG |
Colour | White |
