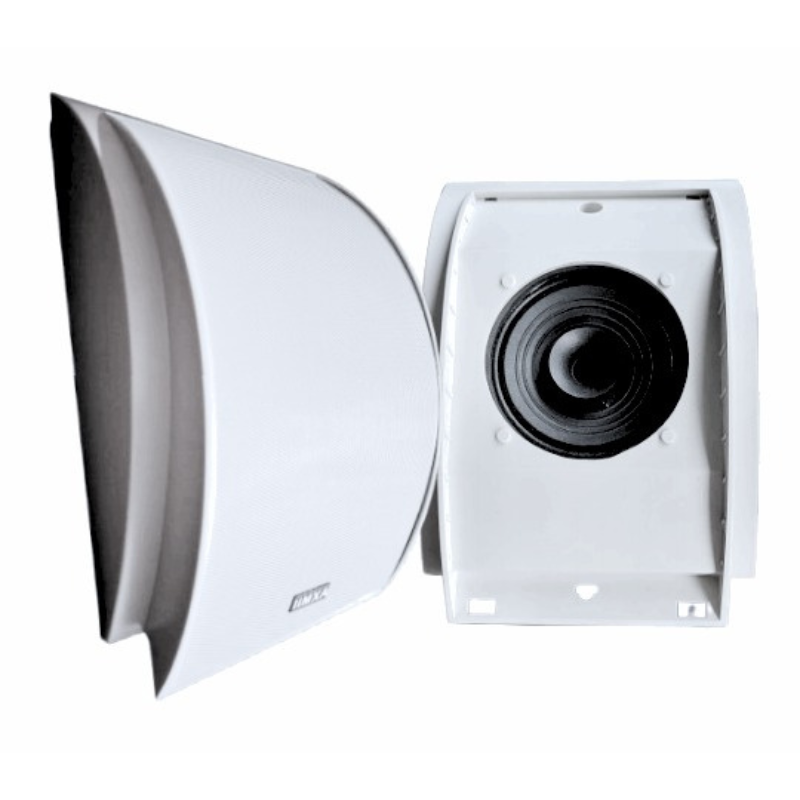

Wall-Mounted Speaker BS-533A
The BS-533A is a wall-mounted speaker crafted from durable ABS resin and features an aluminum grille. It offers versatile installation options, allowing it to be hooked or mounted directly onto the wall. The screw-type input terminal simplifies cable connections, reducing the risk of loose wires and potential short circuits, while also supporting bridge wiring. Changing the input impedance is straightforward by following the provided instructions and connecting the appropriate color-coded wire. This speaker is powered by a 5-inch dual-cone driver, with tapping wattage details available in the technical specifications below.
Power Rating | 6W |
---|---|
Speaker Driver Type | Dual Cone |
Speaker Driver Size | 5" |
SPL | 92 dB |
Freq Response @ 1kHz | 130-15 KHz |
Primary Impedance of Tapping | 10k/ 3.3k/ 1.6k Ohm |
Transformer Taps (100V) | 1.5W/ 3W/ 6W |
Secondary Impedance (Ohm) | 8 Ohm |
Physical | Specifications as below: |
Material | ABS/ Aluminium Front Grille |
Dimension (HxWxD) | 312x210x85 MM |
Weight | 1.4KG |
Colour | White |
